ekd series

Series EKA: ½” Disc Thermostat

EKA series is a compact design, auto and manual thermostat for controlling or limiting temperature changes.

The switch mechanism is actuated by a snap-action bimetal disc, which opens and closes a set of electrical contacts when predetermined temperature is reached. The bimetal disc is electrically and thermally isolated from the switch.

Different mounting configurations are available for maximum design flexibility: surface mount, air-stream and duct mounts.

Used in boilers, heaters, vacuum cleaners, stoves, dryers, dishwashers and air conditioners.

Temperature range: -30C to 170C (-22F to 338F)
Contact rating: SPST contact with 16A@120/240VAC

bouton download pdf

Series EKA

Series EKA

Series EKA

Series EKA


Series EKB

Series EKB: 3⁄4” Disc Thermostat

The sealed design of EKB provides moisture resistance for high humidity environments.

Automatic reset for high and low temperature applications and manual reset for high limit temperature. The switch opens or closes its electric contacts on temperature rise.

Surface and tube mounting options with a wide variety of terminals, lead wires and mounting options provide excellent design flexibility.

Used in refrigerators, air conditioners, Ice makers freezers, as well as defrost termination and fan delay control.

Temperature range: -30C to 80C (-22F to 176F)
Contact rating: SPST and SPDT with 5A to 25A@ 120/240VAC

bouton download pdf

Series EKB

Series EKB

Series EKB


Series EKC

Series EKC: 3⁄4” Disc Thermostat (High Temperature)

EKC is designed for heavy electric load, with a variety mounting flanges and terminal configurations.

The snap action of the bimetal disc provides high speed contact separation ensuring long contact life cycle and eliminating contact chattering.

EKC-0200 series is a narrow differential, adjustable temperature controls for applications where field adjustment is required such as electric water heaters.

Widely used in HVACR equipment, vending machines, dryer and heaters.

Temperature range: -30 to 170C (-22F to 338F)
Contact rating: SPST and SPDT with up to 35A@120/240VAC

bouton download pdf

Series EKC

Series EKC

Series EKC

Series EKB

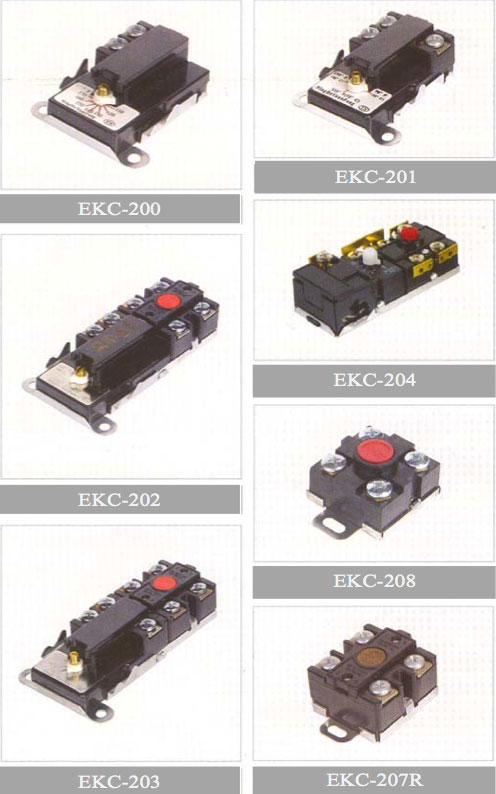

Series EKC-200

Electric Water Heater Thermostats and Limits

Surface Mount Temperature Sensing Controls

bouton download pdf

  • High electrical capacity.
  • Snap-Action contact.
  • Long life-proven reliability
  • Adjustable control or manual reset styles
  • UL and cUL

Series EKC-200

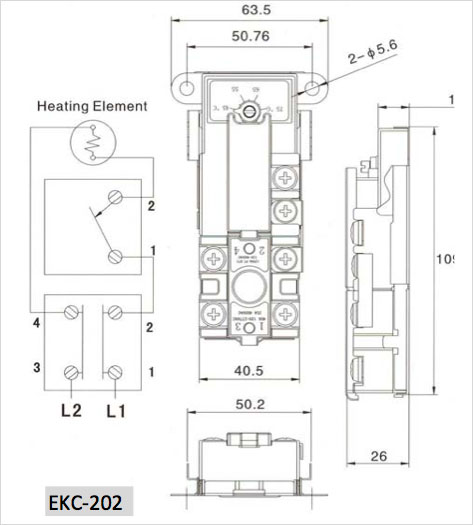

EKC-202

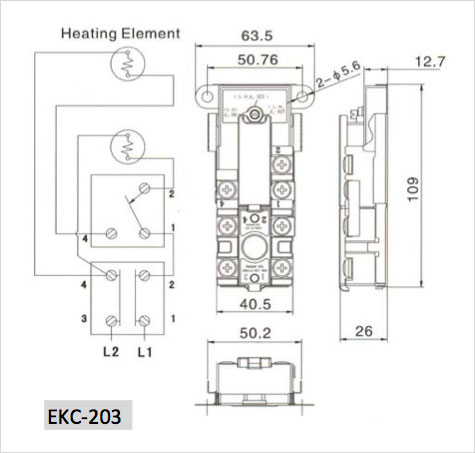

EKC-203

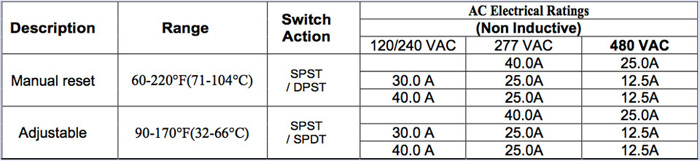

EKC-200, Description


EWD

Terminal C-L cut-in at temperature rise. Terminal L-H of auxiliary switch cut-out when the shaft turned to OFF point. Terminal C-L can be cut-out at OFF point, and can be forced ON at ON point. The ON temperature is constant at any position from Warm to Cold, the OFF temperature is adjustable. This behavior assure an automatic defrost function.

The WD-R series with an internal bellows heating resistance connected to C-L, is able to be used at cross-ambient in a refrigerator.

Constant cut-in temp, range: +2~+8°C

Available OFF temp, range: -36—4°C

Adjustable temp, range: Max.l9°C

Differential: Min.8°C

bouton download pdf bouton download pdf

Refrigerators.






EWK

With a high current capability switch of SPST or SPDT. There is a narrow differential and a forced OFF function. This kind of thermostats can be used in direct current (DC) with inductive loads.

WK-B and WK-C series with bottom outlet terminals are available.

Thermostats with a fix operating temperature(without a shaft) for air conditioner defrosting are also availabe.

Available temp, range: -35~+40°C

Adjustable temp, range: Max.20°C

Differential: Min.2°C

bouton download pdf




Room air conditioners, Freezers, Automobile air conditioners.


EWP

Terminal C-L Cut-in at temperature rise. With SPST or SPOT, and an additional auxiliary switch. There are forced OFF and/or PD points. Type WP-T with two-spring mechanism is a wide differential range.

Available temperature range: -36~+15°C

Adjusting temperature range Max.25°C

Differential: WP(5~14°C) 5-25 °C WP-T (10-25 °C)

bouton download pdf




Refrigerating/freezing devices, Automobile air conditioeing


Terminal 3-4 closes at temperature rise

In general type KP is classified into 2 basic versions:

Version A: KP with standard switching differential

Version B: KP with wide switching differential

Rating at 250 V 50 Hz

3-4: 6(6)A




Operating range: -40 to+40°C

Adjustment range: Vers ion A: 4 to 30K; Version B: 5 to 15K.

Switching differential: Version A: 3 to 14K; Version B: 10to25K.

Capillary type: Shape A (standard); Shape B (on request)

Refrigerating/freezing devices Automotive air conditioning


ekd series

Temperature control with S.P.S.T. switchand auxiliary switch for off position. Automatic defrost function by constant cut-in value

Terminal 3-4 closes at temperature rise

Terminal 3-6 opens in OFF position

Rating At 250 V 50 Hz

3-4: 6(6)A

3-6: 6(6)A

bouton download pdf


Control shown in position COLD according to standard type, other dial shaft positions on request.



Operating range: -32 to +6°C

Adjustment range: 4 to 18K.

Constant cut-in value: +2 to +8K.

Capillary type: Shape A (standard); Shape B (on request)

Refrigerators


ekd series

Temperature control with S.P.S.T. switch and signal switch.

Terminal 3-4 closes at temperature rise

Terminal 3-6 closes when warning temperature has been reached

Rating At 250 V 50 Hz

3-4: 6(6)A

3-6: 0.1A

bouton download pdf


Control shown in position COLD according to standard type, other dial shaft positions on request.



Operating range: -40 to +40°C

Adjustment range: 4 to 30K

Switching differential: 3 to 14K

Signal differential: 4 to 7K

Capillary type: Shape A (standard); Shape B (on request)

Freezers
