E-652A

The E-652A transducer offers inexpensive yet accurate true RMS monitoring of AC current in one circuit.

This product is ideal as a precision AC load transducer for Control and Energy Management applications.

Combined with a standard 5A CT the loop powered E-652A provides a convenient tool for accurate load monitoring in any electrical equipment.

buton download pdf

  • Highly accurate, true RMS measurement.
  • Self powered from the 4 - 20 mA loop.
  • Robust construction (potted box).
  • Compact size and easy wiring.
  • Ideal for Control and Energy Management applications.
  • Power: Standard 4-20 mA loop; voltage 8 - 35 VDC
  • Current Input: Wire current input through CT up to calibrated Range. Unit may be wired off a secondary 5A CT for higher input ranges.
  • Output: 4-20 mA loop (sinking); max. impedance 750 ohm @24VDC (barrier strip terminal provided).
  • Accuracy: TRMS, 0.3% FS for 0-5A & 0-10A ranges, 0.5% for other ranges.
  • Enclosure: Potted plastic box L=3”, W=1.1”, H=0.4” + CT height, panel mount ready. Interfacing CT permanently attached(non universal version); Dielectric test (input/output) - 4 kVRMS

The E-652A is a precision current transducer that performs true RMS current measurements in one AC circuit wired through an interfacing CT mounted on the top of the enclosure.

The E-652A may be ordered for various current ranges. The 0-5A and 0-10A current ranges feature a very high accuracy CT providing 0.3% accuracy (full scale). Other standard ranges include 30A, 50A and 100A. The 5A calibrated i-SnailÔ-A can be applied to the secondary wire of a 5A CT thus extending the metering range as required.

The E-652A is powered from the 4 -20 mA current loop (it acts as a ‘two wire loop device’). It will accept a wide range of loop excitation voltages, typically 24 VDC. The unit is hermetically potted in a small plastic enclosure equipped with two mounting holes. A barrier strip terminal is provided for the output wiring.

The E-652A does not include a built in CT and is equipped with spade connectors allowing remote installation of various Elkor miniature CTs (MCTA and MSCT).

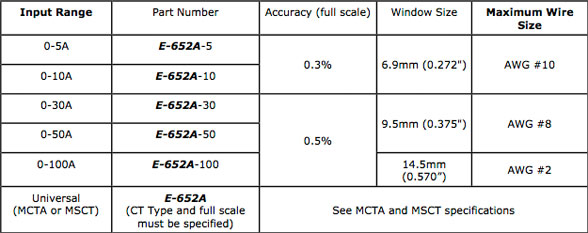

E-652A, Product description


E-652V

The E-652V offers an inexpensive means to monitor any electrical load.

This product is ideal as an AC load transducer for Control and Energy Management applications.

The built-in CT and self powered feature combine to make an easy to install, robust solution.

buton download pdf

  • 0-5V DC Output
  • Self powered
  • Robust construction (potted box)
  • Compact size and easy wiring
  • Power: Self powered by line current
  • Input: Wire current input through CT up to calibrated range:
    0-10A AC
    0-25A AC
    0-50A AC
    CT Wire Window: 14.5mm (0.570”)
    Frequency: 50 or 60 Hz
  • Output: 1% of full scale.
  • Accuracy: TRMS, 0.3% FS for 0-5A & 0-10A ranges, 0.5% for other ranges.
  • Enclosure: Potted plastic box L=3”, W=1.1”, H=0.4” + CT height, panel mount ready. Interfacing CT permanently attached; Dielectric test (input/output) - 4 kVRMS

The E-652V is a simple self power AC current transducer that provides a 0-5V analog signal proportional to the AC current flowing through the CT. Available in three ranges, the i-SnailÔ-V is calibrated to AC sine wave. There is no need for input current configuration nor trimming, saving time and confusion in the field.

The transducer is enclosed in a fire retardant ABS box and encased in potting epoxy to withstand moisture, dust and vibration. The integrated mounting tabs provide an easy means to install the unit on a wall or within a control panel.

The E-652V is ideal for load monitoring without the need for an external power supply. Two signal wires are all that are needed to obtain a linear, 0 to 5 V DC output voltage that may be easily interfaced with PLCs and DDC SCADA systems.

The E-652V includes an on-board CT with a 14.5mm (0.570”) wire window that can accommodate up to AWG #2. The available input ranges are 0-10A, 0-25A and 0-50A. Multiple turns of the primary wire may be used to alter the input range.

Where XX specifies the full scale input current (10, 25, 50 Amps AC)
