LF25  Pressure Switch

LF25 pressure switch is to control the pressure of application with higher current catacity. It is widely used in stream cleaner, stream iron and othe pressure control system. It provides SPST or SPDT contact form and switch deadband (also referred to as mechanical differential or hysteresis).

LF25 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Diaphragm material can be selected for the opering medium, temperature range and other parmeters. During the development of a specification, acuation point can be adjusted by the designer, in production, factory setting is required.

buton download pdf

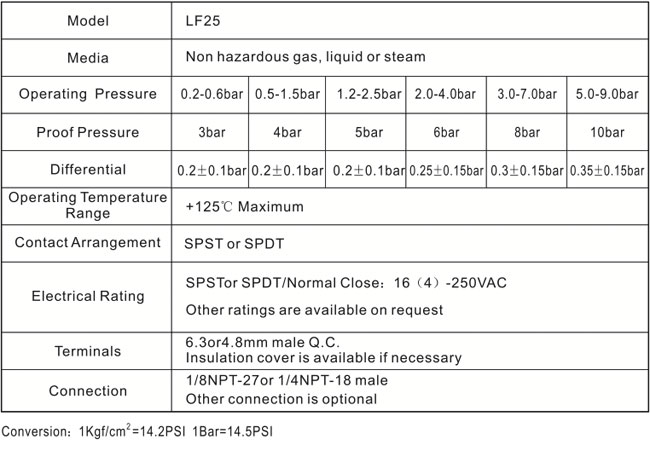

Specifications LF25
